ParallelVolumeOperator

java.lang.Object
- edu.stanford.rsl.conrad.volume3d.VolumeOperator
- - edu.stanford.rsl.conrad.volume3d.ParallelVolumeOperator

public class ParallelVolumeOperator
extends VolumeOperator

Nested Class Summary
- Nested classes/interfaces inherited from class edu.stanford.rsl.conrad.volume3d.VolumeOperator
  VolumeOperator.FILTER_TYPE

Constructor Summary

Constructors
Constructor and Description

ParallelVolumeOperator()

Constructors
Constructor and Description
`ParallelVolumeOperator()`

Method Summary

Methods
Modifier and Type	Method and Description
`int`	`abs(Volume3D vol)` Determines the absolute volume of the input volume. If the input volume is real Math.abs() is called for each element. If the input volume is complex the power spectrum is computed.
`int`	`addScalar(Volume3D vol, float re_sc, float im_sc)` Adds a scalar to the Volume3D.
`int`	`addVolume(Volume3D vol1, Volume3D vol2)` Adds the second volume to the first volume.
`int`	`addVolume(Volume3D vol1, Volume3D vol2, double weight)` Adds the second volume $%preamble{\usepackage{amsmath}} $y_j$$ multiplied by the scalar weight $%preamble{\usepackage{amsmath}} $s$$ to the first volume $%preamble{\usepackage{amsmath}} $x_j$$ . The first volume is overwritten.
`Volume3D`	`createDirectionalWeights(int dimensions, int[] size, float[] dim, float[] dir, int A, VolumeOperator.FILTER_TYPE t_filt)` Creates an anisotropic, i.e.
`Volume3D`	`createExponentialDirectionalHighPassFilter(int dimensions, int[] size, float[] dim, float[] dir, int A, float B, float ri, VolumeOperator.FILTER_TYPE t_filt)` Creates an radially symetric anisotropic quadrature filter according to this definition: %preamble{\\usepackage{amsmath}} \\begin{align*} F(\\mathbf{u}) & = \\left \\{ \\begin{array}{ll} \\left(\\frac{\\displaystyle (\\mathbf{u} \\cdot \\hat{\\mathbf{n}}_k)}{\\displaystyle \|\\rho\|}\\right)^{2A} \\cdot R(\\rho)& \\text{if}\\qquad\\mathbf{u} \\cdot \\hat{\\mathbf{n}}_k >0 \\\\ 0 & \\text{else} \\end{array} \\right .
`Volume3D`	`createGaussLowPassFilter(int dimensions, int[] size, float[] dim, float alpha)` Creates an isotropic, i.e.
`Volume3D`	`createHighPassFilter(int dimensions, int[] size, float[] dim, int filt_loop, float lp_upper)` Creates a directional high pass filter $%preamble{\usepackage{amsmath}} $F_{\displaystyle\text{HP}_k}(\mathbf{u}) = 1 - (R_\text{LP}(\rho) \cdot D_k(\mathbf{u}))$$ .
`Volume3D`	`createLowPassFilter(int dimensions, int[] size, float[] dim, float lp_upper)` Creates an isotropic low-pass filter, i.e.
`int`	`divideByVolume(Volume3D vol1, Volume3D vol2)` Divides the first volume by the second volume element by element
`int`	`fftShift(Volume3D vol)` Performs the shift required for the FFT, i.e.
`int`	`imag(Volume3D vol)` Maps a complex volume onto its imaginary part.
`void`	`makeComplex(Volume3D vol)` Makes the volume complex, i.e.
`float`	`max(Volume3D vol)` Determines the maximum intensity of a pixel in the given volume.
`float`	`mean(Volume3D vol)` Determines the arithmetic average $%preamble{\usepackage{amsmath}} $\mu$$ of all $%preamble{\usepackage{amsmath}} $N = \prod_i d_i$$ voxels $%preamble{\usepackage{amsmath}} $x_j$$ .
`float`	`min(Volume3D vol)` Determines the minimum intensity of the volume.
`int`	`minOfTwoVolumes(Volume3D vol1, Volume3D vol2)` Determines the minimal volume element by element. The output is stored in the first volume.
`int`	`multiply(Volume3D vol1, Volume3D vol2)` Multiplies two volumes element by element.
`int`	`multiplyScalar(Volume3D vol, float re_sc, float im_sc)` Multiplies the volume by a scalar.
`int`	`real(Volume3D vol)` Maps volume onto its real part.
`Volume3D`	`solveMaximumEigenvalue(Volume3D[][] structureTensor)` Method to compute the maximal eigenvalue $%preamble{\usepackage{amsmath}} $\lambda_1$$ per volume element for a volume structure tensor.
`int`	`sqrt(Volume3D vol)` Replaces every element in the volume with the output of Math.sqrt(), i.e.
`int`	`upperLimit(Volume3D vol, float max)` Iterates the volume and replaces all entries greater than max with max.

Methods inherited from class edu.stanford.rsl.conrad.volume3d.VolumeOperator
createVolume, createVolume, divideScalar, getFrequencyBoundings, sigmoid, subtractVolume

Methods inherited from class java.lang.Object
equals, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

- Constructor Detail
  - ParallelVolumeOperator
```
public ParallelVolumeOperator()
```
- Method Detail
  - solveMaximumEigenvalue
```
public Volume3D solveMaximumEigenvalue(Volume3D[][] structureTensor)
```
    Description copied from class: VolumeOperator

    Method to compute the maximal eigenvalue $%preamble{\usepackage{amsmath}} $\lambda_1$$ per volume element for a volume structure tensor.

    Overrides:

    solveMaximumEigenvalue in class VolumeOperator

    Parameters:
    structureTensor - the structure tensor as 2D array of volumes.

    Returns:
    the values of $%preamble{\usepackage{amsmath}} $\lambda_1$$ as volume
  - createDirectionalWeights
```
public Volume3D createDirectionalWeights(int dimensions,
                                int[] size,
                                float[] dim,
                                float[] dir,
                                int A,
                                VolumeOperator.FILTER_TYPE t_filt)
```
    Description copied from class: VolumeOperator

    Creates an anisotropic, i.e. $%preamble{\usepackage{amsmath}} $D(\mathbf{u})$$ is not constant, filter as Volume3D if FILTER_TYPE is QUADRATIC.
    $%preamble{\usepackage{amsmath}} \begin{align*}$
    $\rho = |\mathbf{u}|$ and $\hat{\mathbf{n}}_k$ is the direction of the anisotropy. The case selection is only valid in the QUADRATIC case.

    Overrides:

    createDirectionalWeights in class VolumeOperator

    Parameters:
    dimensions - dimension should be 3
    size - number of pixels per dimension
    dim - resolution
    dir - direction vector $\hat{\mathbf{n}}_k$
    A - parameter A
    t_filt - filter type

    Returns:
    the filter
  - createExponentialDirectionalHighPassFilter
```
public Volume3D createExponentialDirectionalHighPassFilter(int dimensions,
                                                  int[] size,
                                                  float[] dim,
                                                  float[] dir,
                                                  int A,
                                                  float B,
                                                  float ri,
                                                  VolumeOperator.FILTER_TYPE t_filt)
```
    Description copied from class: VolumeOperator

    Creates an radially symetric anisotropic quadrature filter according to this definition:
    $%preamble{\usepackage{amsmath}} \begin{align*}$

    The filter is suitable to estimate the local orientation in direction $\hat{\mathbf{n}}_k$ .

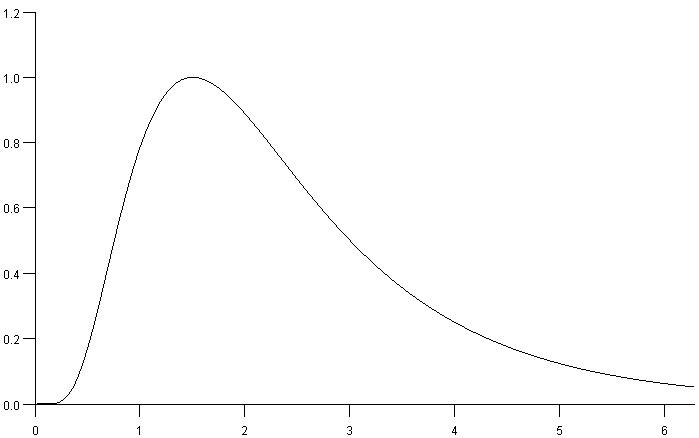

    This plot shows $R(\rho)$ with B = 2, A = 1, and $\rho_i$ = 1.5:

    Note that the volume is moved to FFT octants with the highest frequencies in the center. It can be directly multiplied to the FFT of a volume.

    Overrides:

    createExponentialDirectionalHighPassFilter in class VolumeOperator

    Parameters:
    dimensions - dimension should be 3
    size - number of pixels per dimension
    dim - resolution
    dir - the filter direction $\hat{\mathbf{n}}_k$
    A - factor A
    B - the relative bandwith of the filter B
    ri - $\rho_i$
    t_filt - parameter to

    Returns:
    the filter as volume
    See Also:
    VolumeOperator.fftShift(Volume3D)
  - createHighPassFilter
```
public Volume3D createHighPassFilter(int dimensions,
                            int[] size,
                            float[] dim,
                            int filt_loop,
                            float lp_upper)
```
    Description copied from class: VolumeOperator

    Creates a directional high pass filter $%preamble{\usepackage{amsmath}} $F_{\displaystyle\text{HP}_k}(\mathbf{u}) = 1 - (R_\text{LP}(\rho) \cdot D_k(\mathbf{u}))$$ . The definition of $%preamble{\usepackage{amsmath}} $D_k(\mathbf{u})$$ from createDirectionalFilter is used. The low-pass filter is defined as:
    $%preamble{\usepackage{amsmath}} \begin{align*}$

    $%preamble{\usepackage{amsmath}} $\rho_\text{LP}$$ is the upper limit of the low-pass filter.

    This plot shows the low-pass filter for $%preamble{\usepackage{amsmath}} $\rho_\text{LP}$$ = 1.5:

    Note that the volume is moved to FFT octants with the highest frequencies in the center. It can be directly multiplied to the FFT of a volume.

    Overrides:

    createHighPassFilter in class VolumeOperator

    Parameters:
    dimensions - dimension should be 3
    size - number of pixels per dimension
    dim - resolution
    filt_loop - for the creation of $\hat{\mathbf{n}}_k$
    lp_upper - $%preamble{\usepackage{amsmath}} $\rho_\text{LP}$$

    Returns:
    the filter as volume
    See Also:
    VolumeOperator.fftShift(Volume3D), VolumeOperator.createDirectionalWeights(int, int[], float[], float[], int, FILTER_TYPE)
  - createLowPassFilter
```
public Volume3D createLowPassFilter(int dimensions,
                           int[] size,
                           float[] dim,
                           float lp_upper)
```
    Description copied from class: VolumeOperator

    Creates an isotropic low-pass filter, i.e. $%preamble{\usepackage{amsmath}} $D_k(\mathbf{u})$$ = 1. The radial shape of the filter is determined by:
    $%preamble{\usepackage{amsmath}} \begin{align*}$

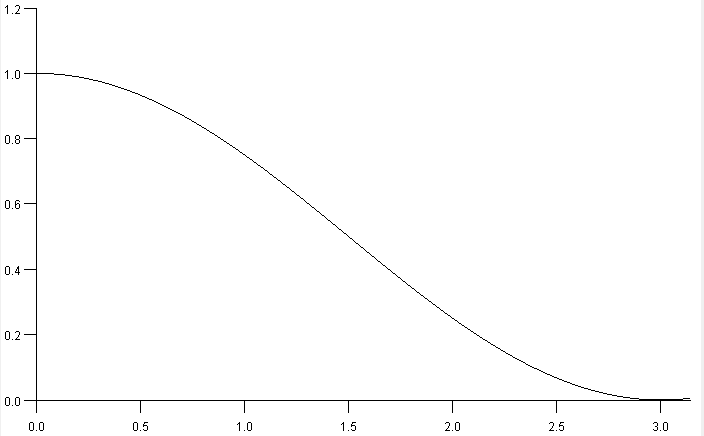

    This plot shows the low-pass filter for $%preamble{\usepackage{amsmath}} $\rho_\text{LP}$$ = 1.5:

    Note that the volume is moved to FFT octants with the highest frequencies in the center. It can be directly multiplied to the FFT of a volume.

    Overrides:

    createLowPassFilter in class VolumeOperator

    Parameters:
    dimensions - dimension should be 3
    size - number of pixels per dimension
    dim - resolution
    lp_upper - $%preamble{\usepackage{amsmath}} $\rho_\text{LP}$$

    Returns:
    the filter as volume
    See Also:
    VolumeOperator.fftShift(Volume3D)
  - createGaussLowPassFilter
```
public Volume3D createGaussLowPassFilter(int dimensions,
                                int[] size,
                                float[] dim,
                                float alpha)
```
    Description copied from class: VolumeOperator

    Creates an isotropic, i.e. $%preamble{\usepackage{amsmath}} $D_k(\mathbf{u})$$ = 1, 3-D Gaussian filter as Volume. The radial shape is determined as:

    $%preamble{\usepackage{amsmath}} \begin{align*}$

    This plot shows the radial shape for $%preamble{\usepackage{amsmath}} $\alpha$$ = 0.5, 1.0, 1.5:

    Note that the volume is moved to FFT octants with the highest frequencies in the center. It can be directly multiplied to the FFT of a volume.

    Overrides:

    createGaussLowPassFilter in class VolumeOperator

    See Also:
    VolumeOperator.fftShift(Volume3D)
  - mean
```
public float mean(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Determines the arithmetic average $%preamble{\usepackage{amsmath}} $\mu$$ of all $%preamble{\usepackage{amsmath}} $N = \prod_i d_i$$ voxels $%preamble{\usepackage{amsmath}} $x_j$$ .
    $%preamble{\usepackage{amsmath}} \begin{align*}$

    Overrides:

    mean in class VolumeOperator

    Parameters:
    vol - the volume

    Returns:
    the mean value $%preamble{\usepackage{amsmath}} $\mu$$
  - max
```
public float max(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Determines the maximum intensity of a pixel in the given volume.

    Overrides:

    max in class VolumeOperator

    Parameters:
    vol - the volume

    Returns:
    the maximal value
  - min
```
public float min(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Determines the minimum intensity of the volume.

    Overrides:

    min in class VolumeOperator

    Parameters:
    vol - the volume

    Returns:
    the minimal value
  - multiplyScalar
```
public int multiplyScalar(Volume3D vol,
                 float re_sc,
                 float im_sc)
```
    Description copied from class: VolumeOperator

    Multiplies the volume by a scalar. If the volume is real the imaginary part of the scalar should be set to 0. Any value different from 0 will cause the volume to be converted to complex values.

    Overrides:

    multiplyScalar in class VolumeOperator

    Parameters:
    vol - the volume
    re_sc - the real part of the scalar
    im_sc - the imaginary part of the scalar

    Returns:
    0, if successful
    See Also:
    VolumeOperator.makeComplex(Volume3D)
  - makeComplex
```
public void makeComplex(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Makes the volume complex, i.e. the internal dimension of the volume is increased to 2, if required and the data is transfered to interleaved complex format.

    Overrides:

    makeComplex in class VolumeOperator

    Parameters:
    vol - the volume
  - addScalar
```
public int addScalar(Volume3D vol,
            float re_sc,
            float im_sc)
```
    Description copied from class: VolumeOperator

    Adds a scalar to the Volume3D. If the volume is real the imaginary part should be set to 0. Otherwise, the volume is made complex.

    Overrides:

    addScalar in class VolumeOperator

    Parameters:
    vol - the volume
    re_sc - the real part
    im_sc - the imaginary part

    Returns:
    0, if successful.
    See Also:
    VolumeOperator.makeComplex(Volume3D)
  - multiply
```
public int multiply(Volume3D vol1,
           Volume3D vol2)
```
    Description copied from class: VolumeOperator

    Multiplies two volumes element by element. Volume vol1 is overwritten.

    Overrides:

    multiply in class VolumeOperator

    Parameters:
    vol1 - the first volume
    vol2 - the second volume

    Returns:
    0, if successful
  - divideByVolume
```
public int divideByVolume(Volume3D vol1,
                 Volume3D vol2)
```
    Description copied from class: VolumeOperator

    Divides the first volume by the second volume element by element

    Overrides:

    divideByVolume in class VolumeOperator

    Parameters:
    vol1 - the first volume
    vol2 - the second volume

    Returns:
    0, if successful
  - addVolume
```
public int addVolume(Volume3D vol1,
            Volume3D vol2)
```
    Description copied from class: VolumeOperator

    Adds the second volume to the first volume.

    Overrides:

    addVolume in class VolumeOperator

    Parameters:
    vol1 - the first volume
    vol2 - the second volume

    Returns:
    0, if successful
  - addVolume
```
public int addVolume(Volume3D vol1,
            Volume3D vol2,
            double weight)
```
    Description copied from class: VolumeOperator

    Adds the second volume $%preamble{\usepackage{amsmath}} $y_j$$ multiplied by the scalar weight $%preamble{\usepackage{amsmath}} $s$$ to the first volume $%preamble{\usepackage{amsmath}} $x_j$$ .
    The first volume is overwritten. The second volume remains unchanged:
    $%preamble{\usepackage{amsmath}} \begin{align*}$

    Overrides:

    addVolume in class VolumeOperator

    Parameters:
    vol1 - the first volume $%preamble{\usepackage{amsmath}} $x_j$$
    vol2 - the second volume $%preamble{\usepackage{amsmath}} $y_j$$
    weight - the weighting factor $%preamble{\usepackage{amsmath}} $s$$

    Returns:
    0, if successful
  - minOfTwoVolumes
```
public int minOfTwoVolumes(Volume3D vol1,
                  Volume3D vol2)
```
    Description copied from class: VolumeOperator

    Determines the minimal volume element by element.
    The output is stored in the first volume.

    Overrides:

    minOfTwoVolumes in class VolumeOperator

    Parameters:
    vol1 - the first volume
    vol2 - the second volume

    Returns:
    0, if successful
  - abs
```
public int abs(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Determines the absolute volume of the input volume.
    If the input volume is real Math.abs() is called for each element.
    If the input volume is complex the power spectrum is computed.
    In any case, the resulting volume is real and has internal dimension 1.
    Method works in place and overwrites the old input volume.

    Overrides:

    abs in class VolumeOperator

    Parameters:
    vol - the input volume.

    Returns:
    0, if successful
  - real
```
public int real(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Maps volume onto its real part.

    Overrides:

    real in class VolumeOperator

    Parameters:
    vol - the volume to be mapped.

    Returns:
    0, if successful
  - imag
```
public int imag(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Maps a complex volume onto its imaginary part.

    Overrides:

    imag in class VolumeOperator

    Parameters:
    vol - the volume

    Returns:
    0, if successful
  - upperLimit
```
public int upperLimit(Volume3D vol,
             float max)
```
    Description copied from class: VolumeOperator

    Iterates the volume and replaces all entries greater than max with max.

    Overrides:

    upperLimit in class VolumeOperator

    Parameters:
    vol - the volume
    max - the maximum

    Returns:
    0, if successful
  - sqrt
```
public int sqrt(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Replaces every element in the volume with the output of Math.sqrt(), i.e. each element's square root.

    Overrides:

    sqrt in class VolumeOperator

    Parameters:
    vol - the volume to be processed.

    Returns:
    0, if successful
  - fftShift
```
public int fftShift(Volume3D vol)
```
    Description copied from class: VolumeOperator

    Performs the shift required for the FFT, i.e. moves the high frequencies to the center and the low frequencies to the periphery. If called again on the same volume, its changes are reversed.

    Overrides:

    fftShift in class VolumeOperator

    Parameters:
    vol - the volume

    Returns:
    0, if successful
